Stainless Steel Wire Mesh

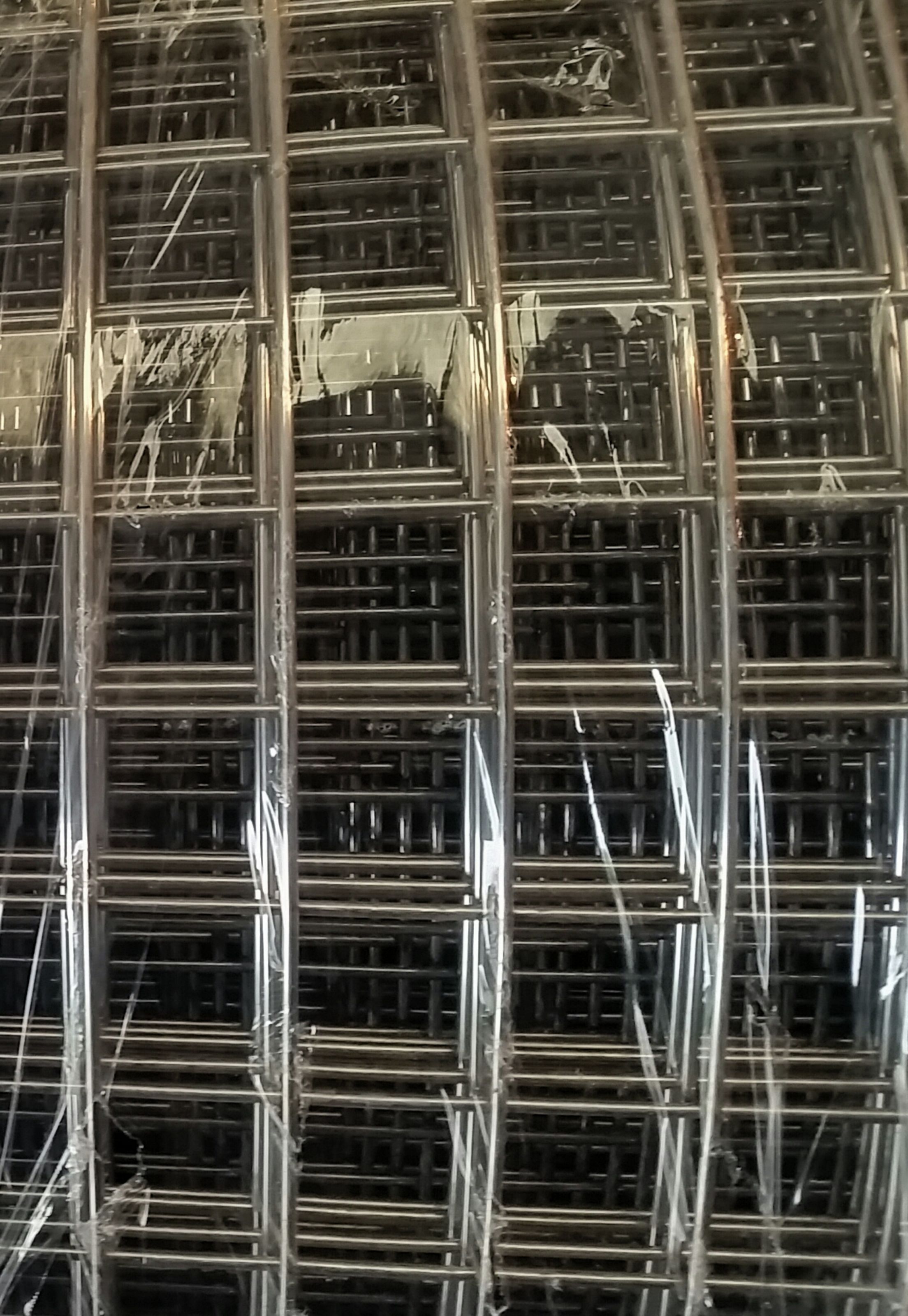

Stainless welded wire mesh
  • Stainless welded wire mesh
  • Stainless Steel Wire Mesh

Here is an example of the Stainless Steel Mesh we supply

  • Stainless Steel Square Welded Wire Mesh.
  • Stainless Steel Square Netting hexagon.
  • Stainless Steel Square wire mesh twill weave.

Galvanized Steel Wire Mesh

  • Galvanized Hexagonal wire mesh ( Chicken mesh).
Specifi­cation List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit (mm)
1/4" x 1/4" 6.4mm x 6.4mm 22, 23, 24
3/8" x 3/8" 10.6mm x 10.6mm 19, 20, 21, 22
1/2" x 1/2" 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8" 16mm x 16mm 18, 19, 20, 21
3/4" x 3/4" 19.1mm x 19.1mm 16, 17, 18, 19, 20, 21
1" x 1/2" 25.4mm x 12.7mm 16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2" 38mm x 38mm 14, 15, 16, 17, 18, 19
1" x 2" 25.4mm x 50.8mm 14, 15, 16
2" x 2" 50.8mm x 50.8mm 12, 13, 14, 15, 16

Technical Note

  • Standard roll length: 30m; width: 0.5m to 1.8m.
  • Special sizes available at request.
  • Packing: in waterproof paper in rolls. Custom packing available at request.

Cold Heading Wire

Cold heading wire is processed to combine formability and ductility with enduring strength.

Forming wire

Stainless steel forming wire is suitable for thousands of applications due to its ductility, corrosion resistance and strength.

Galvanised Tying Wire

Galvanized tying wire is available from stock in various sizes.

Stainless Steel MIG Wire

Stainless Steel MIG welding wire is available from stock in various grades to buy now.

Stainless Steel Profiled Wire

Profiled or shaped wire can be supplied for many different applications and industries.

Stainless Steel Spring Wire

Stainless Steel Spring Wire is suitable for all types of spring making.

Stainless Steel TIG Wire

Stainless steel tying wire is available from stock in various grades.

Stainless Steel Tying Wire

This is ideal for lacing or tying, stainless steel tying wire can be used for a wide variety of applications

Stainless Steel Ultra Fine Wire

Ultra fine stainless steel wires from 30 microns
