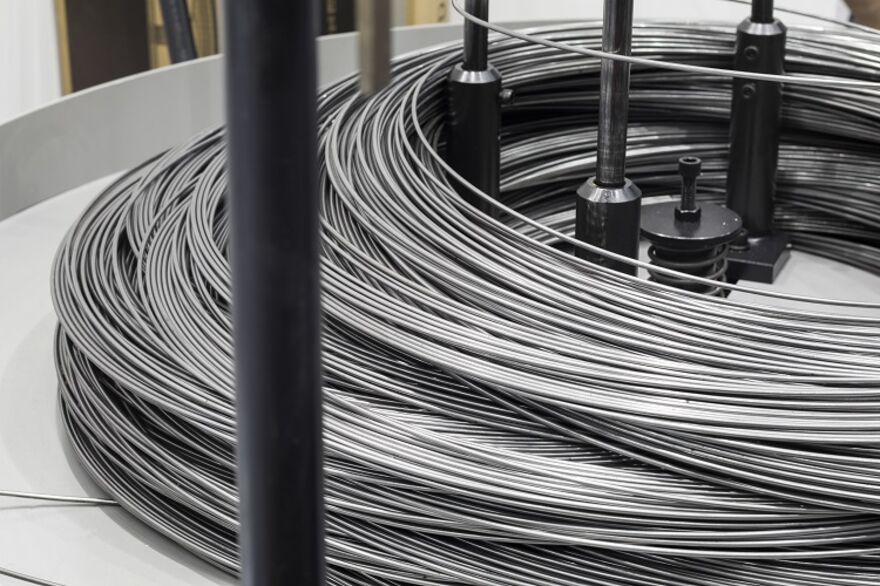

Cold Heading Wire

Cold Heading wire
Cold heading wire is processed to combine formability and ductility with enduring strength.

Cold heading wire is processed to combine formability and ductility with enduring strength.

This makes it ideal for manuf­ac­turing fasteners and fixings such as bolts, screws, pins, rivets, studs and tie rods.

Quality

BS Stainless cold heading wire features a blend of charac­te­ristics that are vital in the production of fasteners and fixings. They have excellent corrosion resistance, high formability, a good surface finish and low magnetism after heading and threading.

We incorporate a high level of inspection and quality control to ensure consistency throughout the wire, resulting in a high-quality product with a longer lasting die life and increased machi­nability. We also work within the scope of ISO 9001:2015 management system.

Coatings

To ensure maximum performance and efficiency when machining, our cold heading wire can be supplied with a consistent soap coating that enables the forming machines to run efficiently at high speeds.

Other coatings are available depending on our customers’ specifi­cations such as metallic coated, copper coated and various others.

Grades

Our cold heading wire is available in a variety of 300 and 400 series. Each grade has its own charac­te­ristics.

The most common are, 302HQ, a specialised wire grade, largely used for the manufacture of stainless steel fasteners, includes 3% copper to reduce the cold work hardening rate, it is the standard metal for the manufacture of self-tapping screws and light machine screws.

Chemical composition % by mass MAX unless otherwise stated

Type Name Number C Si Mn P S N Cr Mo Ni Others
302HQ X3CrNiCu18-9-4 1.4567 0.04 1.0 2.0 0.045 0.03 0.11 17.00/19.00 - 8.50/10.50 Cu 3-4
304Cu X3CrNiCu18-9-4 1.4567 0.04 1.0 2.0 0.045 0.03 0.11 17.00/19.00 - 8.50/10.50 Cu 3-4
304L X2CrNi18-9 1.4307 0.030 1.0 2.0 0.045 0.015 0.11 17.50/19.50 - 8.00/10.50 -
304J3S - - 0.08 1.0 2.0 0.045 0.03 - 17.00/19.00 - 8.50/10.50 Cu 1-3
XM-7 - - 0.08 1.0 2.0 0.045 0.03   17.00/19.00 - 8.50/10.50 Cu 3-4
305J1 - - 0.08 1.0 2.0 0.045 0.03 11.0-13.5 16.50/19.00 - 11.00/13.50 Al 0.75-1.50
310 X8CrNi25-21 1.4845 0.1 1.5 2.0 0.045 0.015 0.11 24.00/26.00 - 19.00/22.00
316 X5CrNiMo17-12-2 1.4401 0.07 1.0 2.0 0.045 0.015 0.11 16.50/18.50 2.00/2.50 10.00/13.00 -
316L X2CrNiMo17-12-2 1.4404 0.030 1.0 2.0 0.045 0.015 0.11 16.50/18.50 2.00/2.50 10.00/13.00 -
316LCu - - 0.03 0.65 1.0 0.03 0.03   18.00-20.00 2.00-3.00 11.00-14.00 -
316Ti - - 0.08 0.75 2.0 0.45 0.03 0.1 16.00-18.00 2.00-3.00 10.00-14.00 Ti 5x% (C+N)
321 X6CrNiTi18-10 1.4541 0.08 1.00 2.00 0.045 0.015 - 17.0/19.0 - 9.0/12.0 Ti: 5C/0.70
410 X12Cr13 1.4006 0.08/0.15 1.00 1.50 0.040 0.015 - 11.5/13.5 - 0.75 -
430 X6Cr17 1.4016 0.08 1.00 1.00 0.040 0.015 - 16.0/18.0 - - -

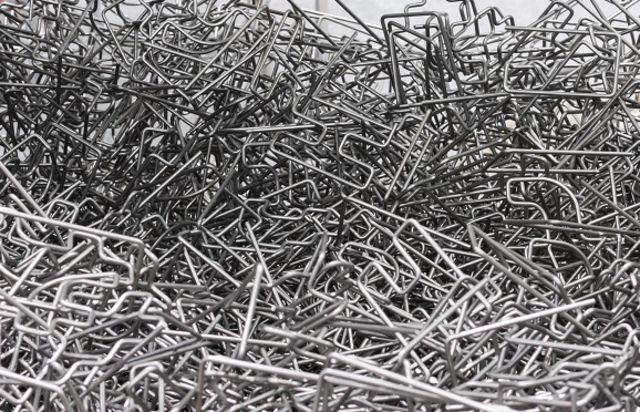

Forming wire

Stainless steel forming wire is suitable for thousands of applications due to its ductility, corrosion resistance and strength.

Galvanised Tying Wire

Galvanized tying wire is available from stock in various sizes.

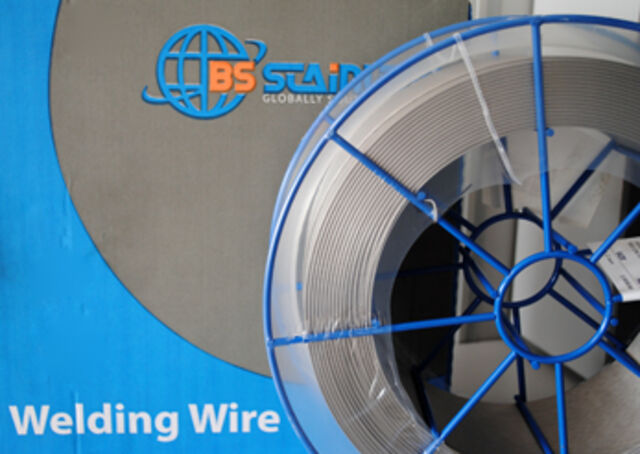

Stainless Steel MIG Wire

Stainless Steel MIG welding wire is available from stock in various grades to buy now.

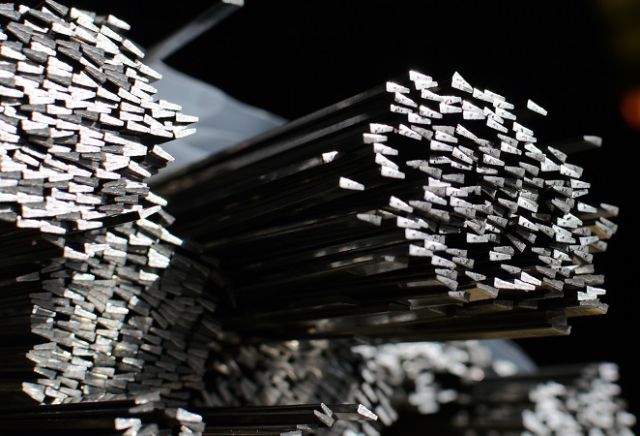

Stainless Steel Profiled Wire

Profiled or shaped wire can be supplied for many different applications and industries.

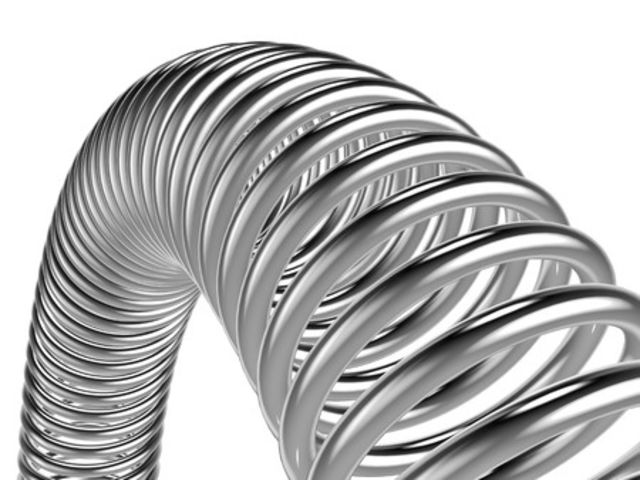

Stainless Steel Spring Wire

Stainless Steel Spring Wire is suitable for all types of spring making.

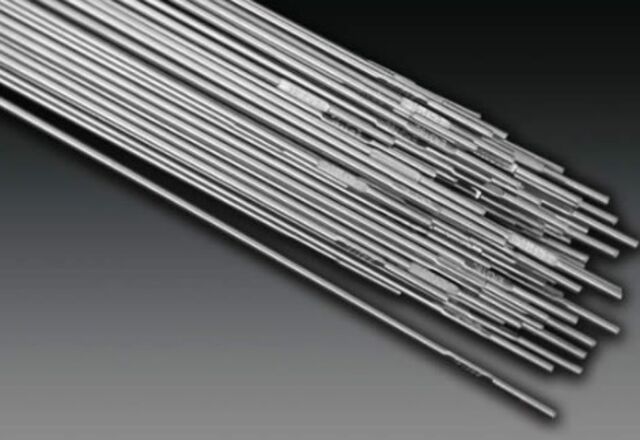

Stainless Steel TIG Wire

Stainless steel tying wire is available from stock in various grades.

Stainless Steel Tying Wire

This is ideal for lacing or tying, stainless steel tying wire can be used for a wide variety of applications

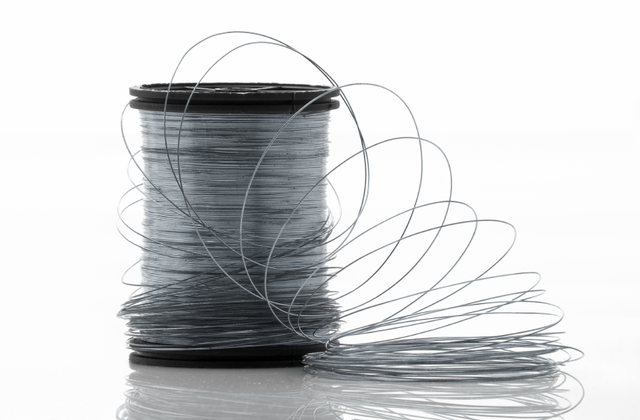

Stainless Steel Ultra Fine Wire

Ultra fine stainless steel wires from 30 microns
