Tedmet®

TedMet-1000-mm-dia
  • TedMet-1000-mm-dia
  • tedmet-01

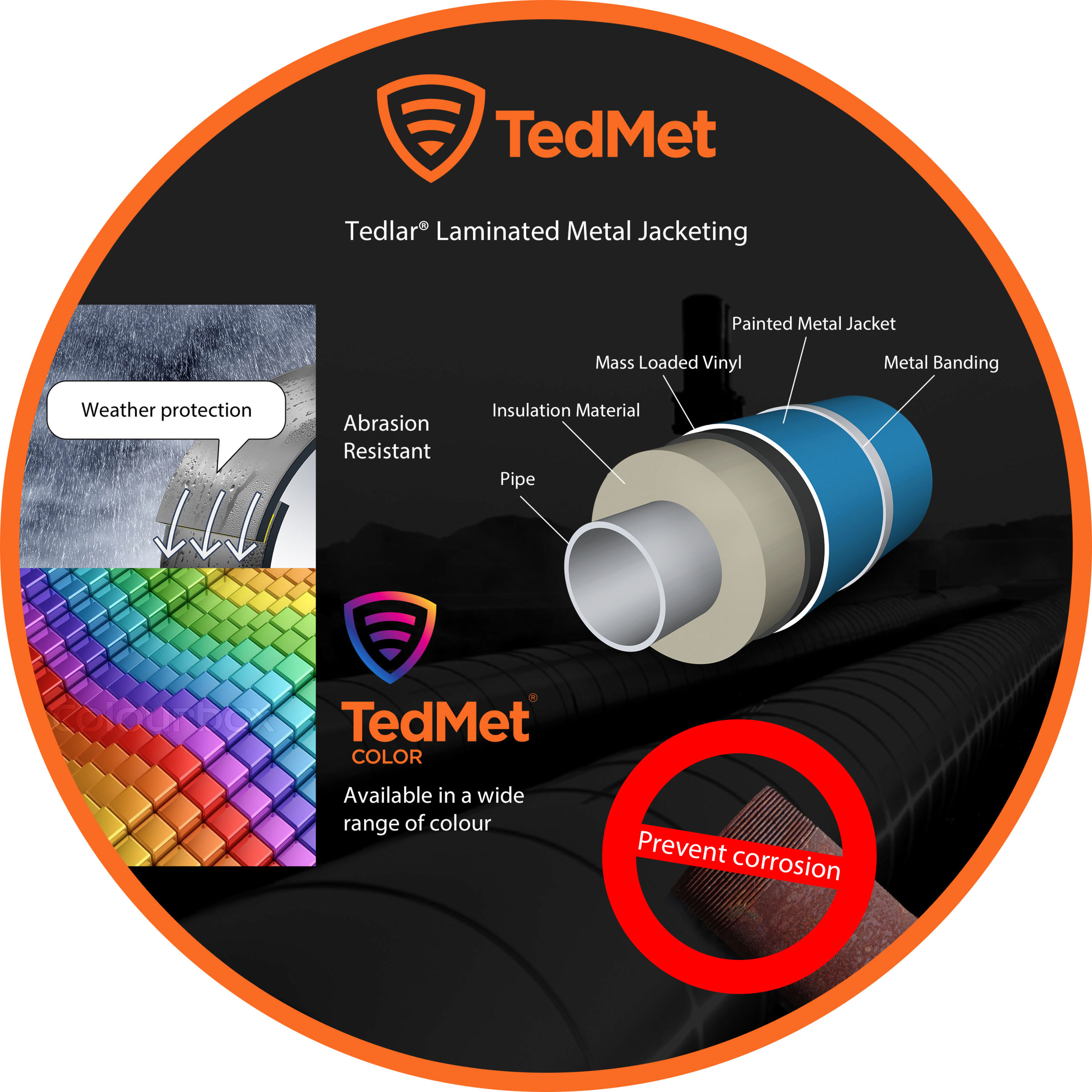

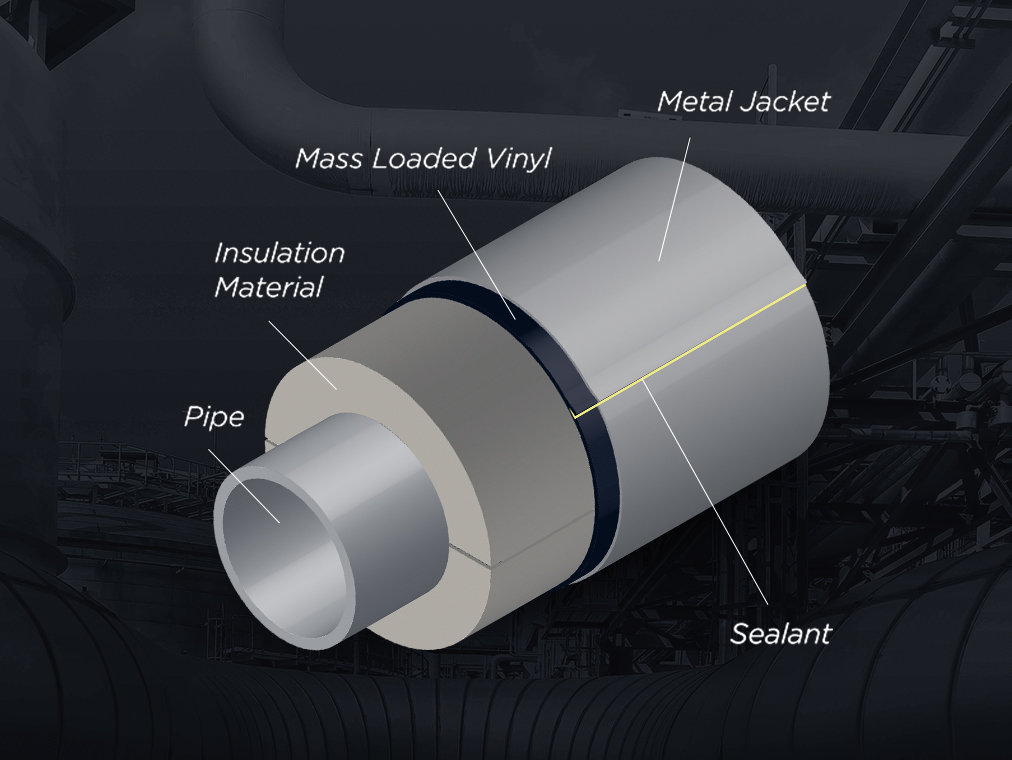

TedMet Insulation Jacketing uses PVF laminated on the topside.

Polyvinyl flouride, Coated coil, Coil coated steel, Tedlar, PVFTedMet Insulation Jacketing uses an innovative PVF laminated on the topside.

TedMet is a polyvinyl fluoride (PVF) film and is factory applied to the metal using an innovative process developed by BS Stainless Limited.

TedMet’s high emissivity property helps in thermal radiation process to ensure lower surface temperature of the pipeline. TedMet also exhibits exceptional abrasion and weather resistance properties along with high resistance to chemical attack make it an ideal jacketing system to be used outdoors in areas of extreme weather conditions. The film thickness is 1.5 mil (37.5 μ)

TedMet is also available with a range of options for the underside of the jacketing:

  • Polyester paint or other paint systems such as PVDF or as required by the specification
  • SoundMet acoustic jacketing for effective noise insulation to comply with ISO 15665
  • DryMet  poly film moisture barrier to prevent galvanic corrosion of the jacketing

Most common base metals for TedMet are Series 300, Stainless Steel and Aluminium, other metals are available as per project specification. Corrugated, embossed and other profiles are also available in TedMet.

Our metal jacketing meet the  latest ASTM standards for aluminum jacketing ASTM C1729 and for stainless steel jacketing ASTM C1767.

Coolmet can be combined with Drymet which is a factory applied moisture barrier, the mositure barrier combines layers of Poly and Surlyn ® to form a protective internal barrier thus preventing corrosion on the inside more  information on Drymet

*For more details on Tedmet® and to request samples, please contact our engineers.

TedMet and SoundMet can also be produced as one jacket with to easily and efficiently solve acoustic issues, with SoundMet on the underside and TedMet on the outside to provide the system with the advantages of both products in a fraction of the typical install time.

Material is securely fastened in place using Bandfix® Banding and wing seals and works along with the rest of our range of Bandfix ® ancillary products for metal jacketing.

ColorMet – Painted Stainless Steel (PVDF)

Painted stainless steel (ColorMet) is available from BS Stainless manufactured in the UK

CoolMet®

Painted metal jacketing (PVDF) that reflects heat away and enhances the performance.

DryMet®

Metal jacketing moisture barrier incorporating Surlyn

SoundMat

SoundMat is designed to improve the sound insulation of pipework applied with a self adhesive backing

SoundMet®

Acoustic Metal jacketing solution, efficient and contributes towards preventing corrosion under insulation (CUI)

VibroMet

VibroMet acoustic insulation jacketing is an innovate metal jacket that prevents vibration

Tedmet® Color

Tedmet Color is a revolutionary PVF coated metal cladding system
